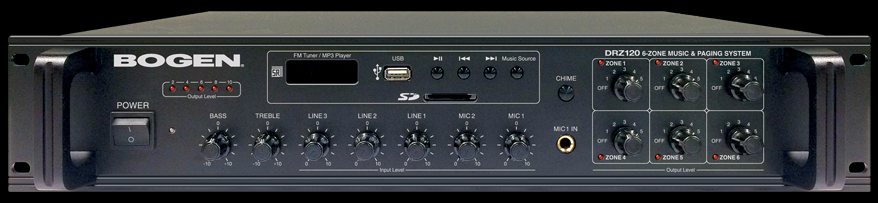

6-Zone Music & Paging System

Features

• Self-contained, 6-zone music and paging system
with FM Tuner, MP3 Player, MIC and LINE inputs.
• 120-watt audio output (into 8-ohms)
• For use with 4-16 ohm or 70-volt speaker systems.
• Enable from 1-6 zones for music or paging
• 7 total audio inputs – MIC1-4, Line1-3
• MIC1 input uses a front 1/4” TRS connector
for a balanced Lo-Z microphone
• MIC1 VOX-activated muting of all other audio
inputs governed via a MUTE Control
• RCA inputs for LINE1-3
• Built-in digital FM Tuner, with PLL synthesizer
to provide accurate frequency selection
• Auto station search and manual tuning
• Back-lit tuner display, LCD
• FM 75Ω coaxial antenna connector
• Over 800 FM station presets
• Bass and Treble controls
• Infrared Remote Controller for FM tuner and MP3
player control:
– Volume control
– TUNER/MP3 select button
– Preset and scan channel selection
– USB/SD media select
– MP3 play/pause/forward/ backward/repeat options
– EQ mode selection (none, Classic, Jazz, Rock,
Bass & Pop)
• Chime button with priority output
• 5-segment LED output level meter
• AUX post-mix LINE output
• Power-on LED indicator
• Rack-mountable with integral brackets
• Listed to UL Standard 60065 for U.S. and Canada
• FCC Part 15 compliant
• Operates from nominal 120V AC, 60 Hz
